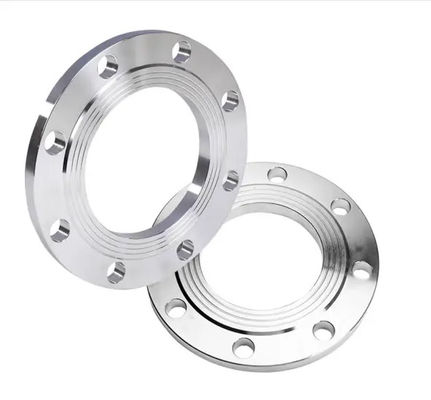

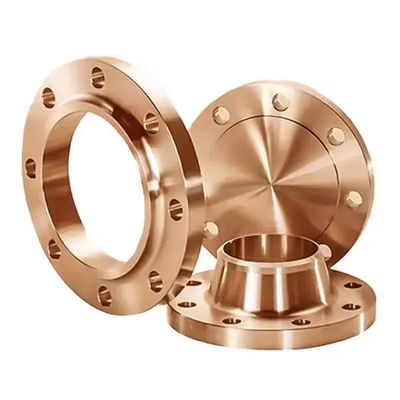

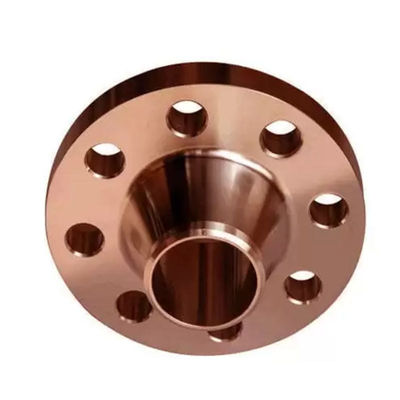

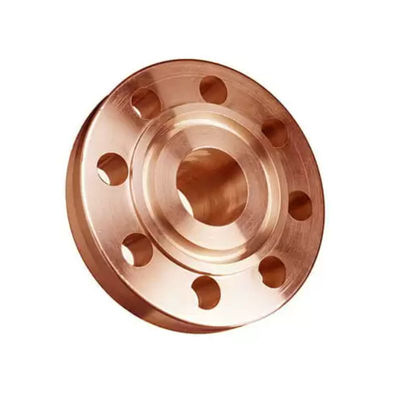

ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
| 원래 장소 | 중국 상하이 |
|---|---|
| 브랜드 이름 | TOBO |
| 인증 | ISO/TUV/SGS |
| 모델 번호 | 구리 니켈 플랜지 |
| 최소 주문 수량 | 1PC |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 표준 배송 패키지 |
| 배달 시간 | 15-30 근무일 |
| 지불 조건 | T/T, 서부 동맹 |
| 공급 능력 | 10Ton/Month |
제품 상세 정보
| 제품명 | ASME B16.5 CuNi 70/30 단조 플랜지, 클래스 150 소켓 용접, 해양 등급 SWRF | 표면 마감 | 매끄럽고 광택이 나거나 고객 사양에 따라 |
|---|---|---|---|
| 밀도 | 8.9 g/cm³ | 연결 유형 | 용접 |
| 모양 | 팔꿈치 | 누르다 | 20바 |
| 길이 | 75mm | 온도범위 | -196 ° C ~ 200 ° C (-320 ° F ~ 392 ° F) |
| 가공성 | 좋은 | 등급 | 90/10 구리 니켈(UNS 70600) |
| 애플리케이션 | 배관계는 연결됩니다 | 용접성 | 좋은 |
| 스레드 유형 | ASME B1.20.1(NPT) | 사이즈 라네 | 1/2 |
| 두께 | 3х2,5 밀리미터 | 크기 범위 | 1/2 |
제품 설명
ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
1.Product Description
The Copper Nickel Socket Weld Flange is manufactured from high-quality 70/30 Copper Nickel Alloy (CuNi 70/30, UNS C71500) in compliance with ASME B16.5 standard. This forged flange features a Class 150 pressure rating and socket weld connection type. The socket weld design allows the pipe to be inserted into a recessed area of the flange and welded around the outer diameter, creating a strong, leak-proof permanent connection ideal for high-pressure systems . The 70/30 copper-nickel alloy consists of 70% copper and 30% nickel, with trace amounts of iron and manganese, providing excellent mechanical properties and corrosion resistance
.
2. Applications
Due to the alloy's exceptional resistance to seawater corrosion and biofouling, CuNi 70/30 flanges are widely used in :
-
Marine & Offshore Engineering: Seawater cooling systems, shipbuilding, desalination plants, offshore platforms
-
Petrochemical Industry: Chemical processing, heat exchangers, pressure vessels
-
Power Generation: Nuclear and thermal power plant cooling systems
-
Naval Applications: Naval ship piping systems (DEF STAN 02-879 compliant)
-
Industrial Applications: Hydraulic pipelines, firewater systems, fish farming cages
3. Product Functions
The Copper Nickel Socket Weld Flange serves the following functions in piping systems:
-
Pipe Connection: Provides a reliable, leak-proof connection between pipes, valves, pumps, and other equipment
-
System Access Point: Allows for easy disassembly and maintenance of piping systems
-
Pressure Containment: Safely contains system pressure up to Class 150 rating
-
Flow Direction Control: Facilitates changes in piping direction when used with elbows or tees
-
Equipment Isolation: When used with blind flanges, can isolate sections of the piping system
4.Technical Specifications
| Parameter | Specification |
| Material Grade | CuNi 70/30 (UNS C71500) |
| Standard | ASME B16.5 / ANSI B16.5 |
| Pressure Class | Class 150 (also available: 300#, 600#, 900#, 1500#, 2500#) |
| Connection Type | Socket Weld (SW) |
| Size Range | 1/4" to 24" (DN15-DN600) |
| Face Type | Raised Face (RF) / Flat Face (FF) |
| Chemical Composition | Cu: 70%, Ni: 30%, Mn: 0.5-1.5%, Fe: 0.6-1.0% |
| Tensile Strength | ≥350 MPa |
| Yield Strength (0.2%) | ≥130 MPa |
| Elongation | ≥36% |
| Density | 0.323 lb/in³ (8.94 g/cm³) at 68°F |
| Temperature Range | Up to 400°F (204°C) |
